Turbine blades are critical components of aircraft engines, directly impacting their efficiency, reliability, and service life. Traditional blade designs are based on classical aerodynamics and material technologies and have been refined over decades. In recent years, IBR (Integrated Bladed Rotor) technology has emerged, introducing a revolutionary one-piece rotor-blade integration structure.
Design Philosophy Comparison
Traditional Blade Design
- Blades and disks are manufactured separately and connected via brazing or mechanical locking.
- Advantages: Mature manufacturing process; convenient for maintenance and replacement.
- Disadvantages: Stress concentration at joints, complex structure, and heavier weight.
IBR Design

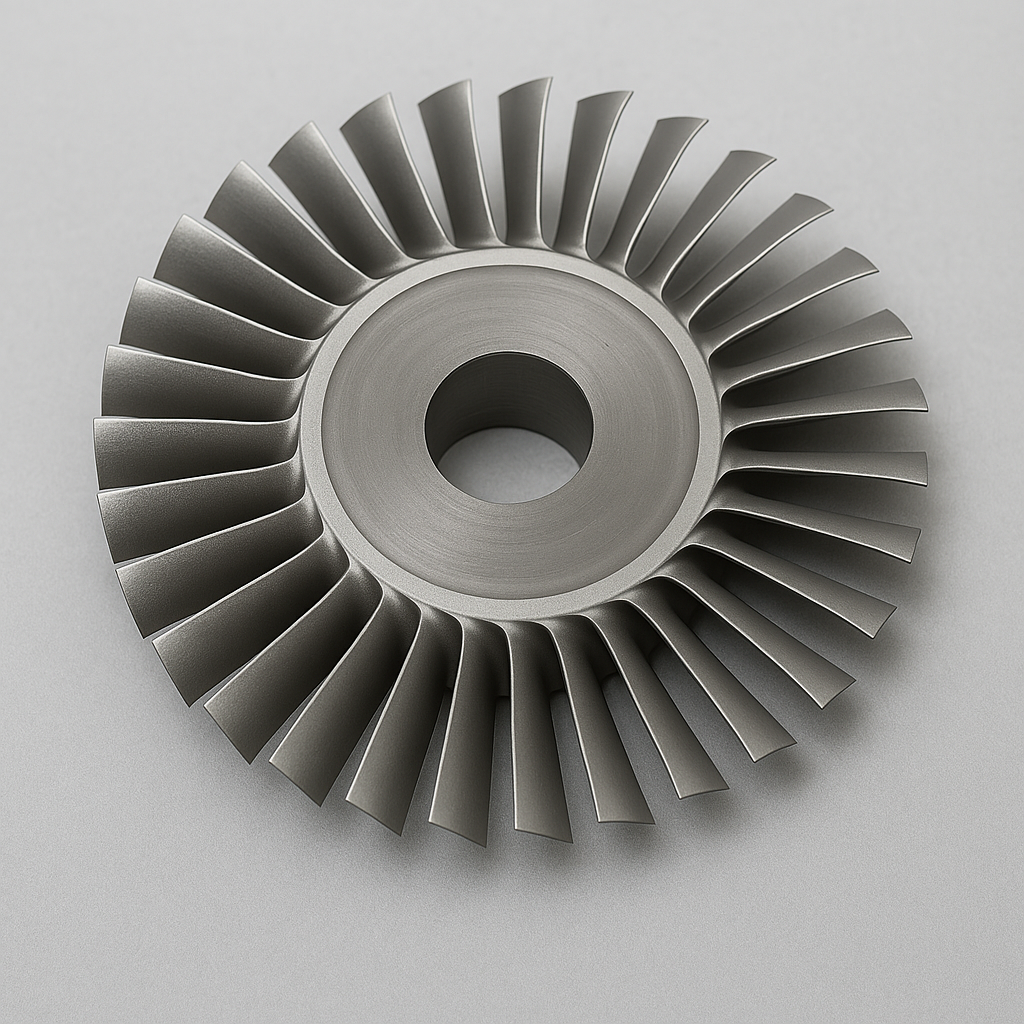

- Blades and rotor disk are cast or machined as a single integrated component, with no joints.
- Advantages: Eliminates joint stress concentration, offers higher structural strength, lighter weight, and improved aerodynamic performance.
- Disadvantages: Complex manufacturing, more difficult maintenance, and higher upfront cost.
Performance Metric Comparison
| Metric | Traditional Blade | IBR Blade | Notes |
|---|---|---|---|
| Structural Strength | Moderate | High | Seamless design reduces stress points |
| Weight (kg) | 10.0 | 8.2 | ~18% weight reduction |
| Fuel Efficiency Gain (%) | 0 | 2.5% | Direct improvement in fuel consumption |
| Fatigue Life (hours) | 10,000 | 13,000 | ~30% longer fatigue life |
| Max Stress (MPa) | 600 | 450 | 25% stress reduction |
| Maintenance Time (hrs) | 8 | 16 | Full rotor replacement increases time required |
Detailed Data Analysis
- Blade Weight: IBR blades reduce weight by approximately 18%, helping to lower overall engine mass and fuel consumption.
- Fuel Efficiency: According to a NASA 2022 report, reduced weight leads to a direct improvement in fuel efficiency of around 2.5%.
- Fatigue Life: Vibration and stress tests indicate that the integrated structure extends fatigue life by about 30%, from 10,000 hours to 13,000 hours, reducing maintenance frequency and risk.
- Max Stress: Structural analysis shows a 25% decrease in maximum stress in IBR blades, improving safety margins.
- Maintenance Time: IBR blades require replacement of the entire rotor during maintenance, doubling the time from 8 to 16 hours compared to traditional blades.
Case Studies
- GE Aviation: The LEAP engine adopts IBR blades to reduce weight, improve performance, enhance fuel economy, and lower operating costs.
- Rolls-Royce: Some engine models utilize IBR blades made with advanced materials to improve heat resistance and fatigue life.
Conclusion
IBR blades significantly enhance performance through integrated design but also pose challenges in terms of manufacturing complexity and maintenance logistics. With the continuous advancement of manufacturing technologies and cost reduction, IBR blades are expected to become the mainstream in turbine blade design for aircraft engines.
